However, there was another aspect of implementation that was highly important for the success of the entire program. Do more than required with less than needed.

Critical point of implementation was the proper positioning of each department (CM and Lube) and interdepartmental cooperation, considering available resources. The approach applied (knowing LUBExpert’s capabilities) was to erase departmental fences and silos and set it more like an army formation:

• first line of defence – grease bearings right and eliminate mayor cause of failures;
• scouting – frequent data collection and trending, share data and locate anomalies;
• light calvary – collect dynamic (TWF, FFT) data for analytic purposes;
• heavy artillery – deeper analysis, problem definition, root cause definition (and elimination).

Lots of work and lots of tasks for a small team.

As usual, Pareto’s 80:20, fits in from all angles. 80 percent of problems come from 20 percent of activities, 20 percent of problems require 80 percent of available time to be analysed … and so on.

Although it may sound ambitious, we assigned first two tasks to our Lube team/technician:

• First line of defence – Lubrication department job, for sure
• Scouting – CM job, normally

Some call it a burden too big, some think it is impossible, we consider it an integral part of LUBExpert strategy. Whoever is taking care of Lubrication, has his hands-on assets more frequently than anyone else in the Reliability team, and has the most interactive relationship with the asset. LUBExpert Specialist (in this case also Strategist) is collecting data for Lubrication purposes, has an opportunity to monitor and trend data before and after replenishment condition, possess the data collected and analysed during replenishment.

Knowing that, LUBExpert Strategy easily takes care of the first two tasks, bringing huge benefits to the CM team by giving them the most valuable data, and consequently time! More available time for deeper analysis, problem definition, root cause search.

At the end of the first year of the LUBExpert program implementation:

• Lube technician took care of 35 – 40 bearings per day (per shift)
• That includes work task preparation, data collection, on-site analysis based on triggered alarms, LUBExpert guided grease replenishment, data overview and possible strategy corrections, and reporting.

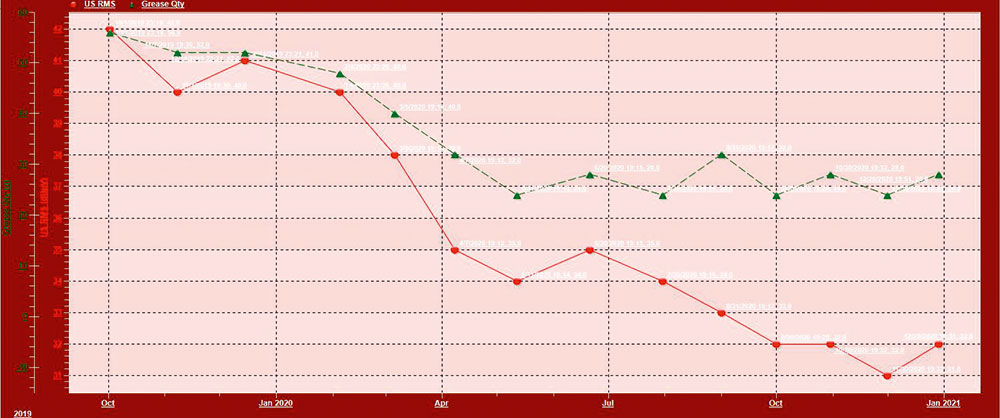

• All bearings showed an excellent response (as one in the picture 1 below), operating at minimum friction and wear level:

Click Image to Enlarge

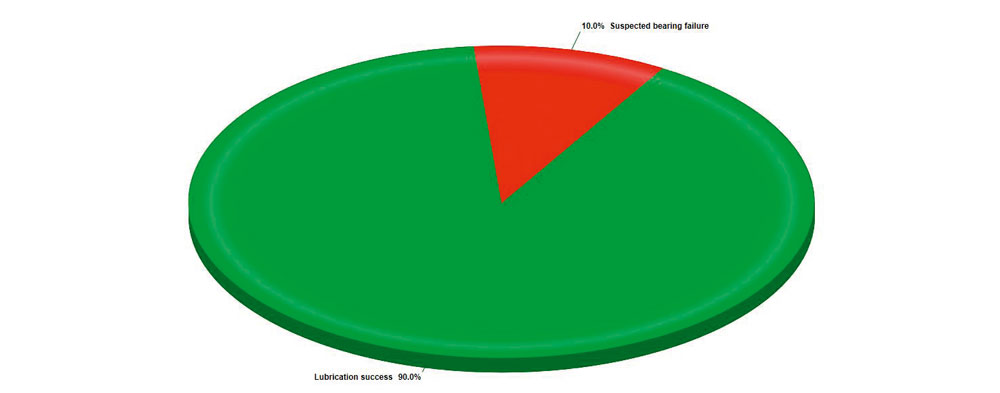

• Process statistics (as shown in picture 2 below) showed high level of performance, correct lubrication practice and strategy settings, as well as additional observations and condition assessments:

Click Image to Enlarge

• Q4 2020 compared to Q4 2019 shows significant decrease of bearings related failures in rotating assets;
• Q4 2020 shows no Lubrication related failures, except ones inherited from previous period;
• Full traceability and detailed data about each process achieved;
• Data shows that most of the previously used interval and quantity plans were incorrect;

LUBExpert Strategy was successfully implemented.
In addition:

• Lube technician delivered 12.500 Ultrasound readings to CM team, including static trend graphs, triggered alarms, before and after grease replenishment values, all relevant events, all taken actions;
• Lube technician delivered 18 “Suspected bearing failure” warnings to CM team;
• Lube technician delivered 10 “Safety risk” warnings to everyone’s attention.

First year of the implemented program can now be safely declared as successful. As usual, once you succeed, there comes the question: “What’s next?”

For the Lube team, “next” equals expanding the program to the entire plant and sustaining top performance.

For the CM team, “next” equals covering more assets, covering more failure modes, digging deeper into analysis to define a root cause, suggesting corrections to remove root cause, and suggesting improvements.

So, first, we need to look at the accomplished results and assigned tasks, once again emphasising the necessity to remove departmental division and silos mindset and conclude that both tasks are actually one. The question that we really needed to answer was: “How can the Lube team further assist the CM team to accomplish more with less or the same resources?”

Again, more work on Lube tech shoulders?

Not really, the answer is: LUBExpert Dynamic.

LUBExpert Dynamic is equipped with an additional feature: collects Dynamic data (TWF, FFT) while performing usual LUBExpert work. No additional time needed, no additional training needed, no additional efforts, only additional benefits. Those benefits are exactly what the CM team needs to accomplish.

Now, out of four army style operating segments, we can add one more to Lube team without creating any additional stress on our Lube tech, but freeing huge amount of time for our CM team:

• First line of defence – Lubrication department job, for sure
• Scouting – CM job, normally
• Light calvary – collect dynamic (TWF, FFT) data for analytic purposes

What does it mean for Lube tech during his daily work? Absolutely nothing.

• Dynamic data is collected in the background.
• Remember this from above?
• Lube technician delivered 12.500 Ultrasound readings to the CM team, including static trend graphs, triggered alarms, before and after grease replenishment values, all relevant events, all actions taken.

Now add the same amount of Time Waveform and Spectra, that normally requires the work of an additional technician.
One more task off the shoulders of the CM team and a huge opportunity for them to increase coverage, dig deeper and have more time for analysis and problem solving.

Each Condition Monitoring team knows exactly how big this benefit is and how it improves CM efficiency.

Here is how it looks like in the first week of implementation. Bearing successfully greased with declared condition as “Suspected bearing failure”, TWF and Spectra collected before and after grease replenishment (picture 3) :

Click Image to Enlarge

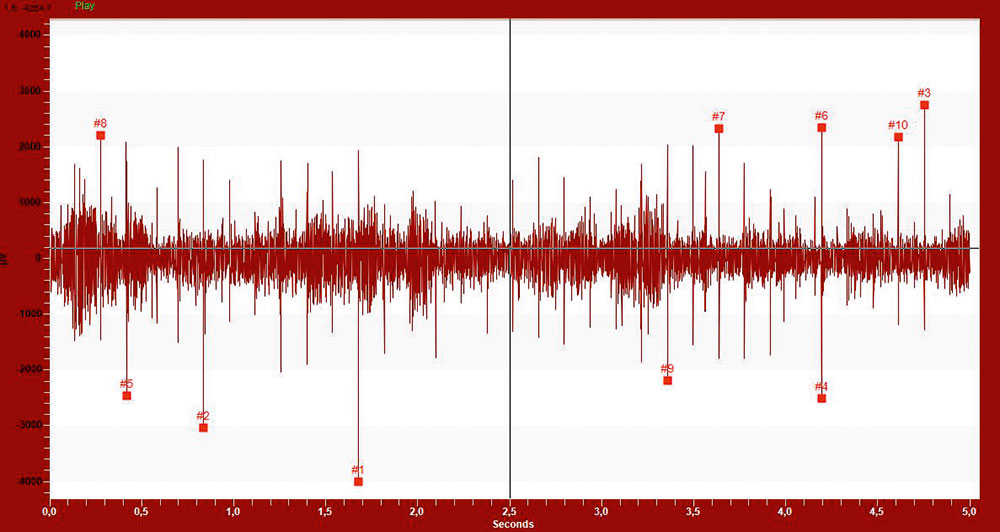

Before grease replenishment

Click Image to Enlarge

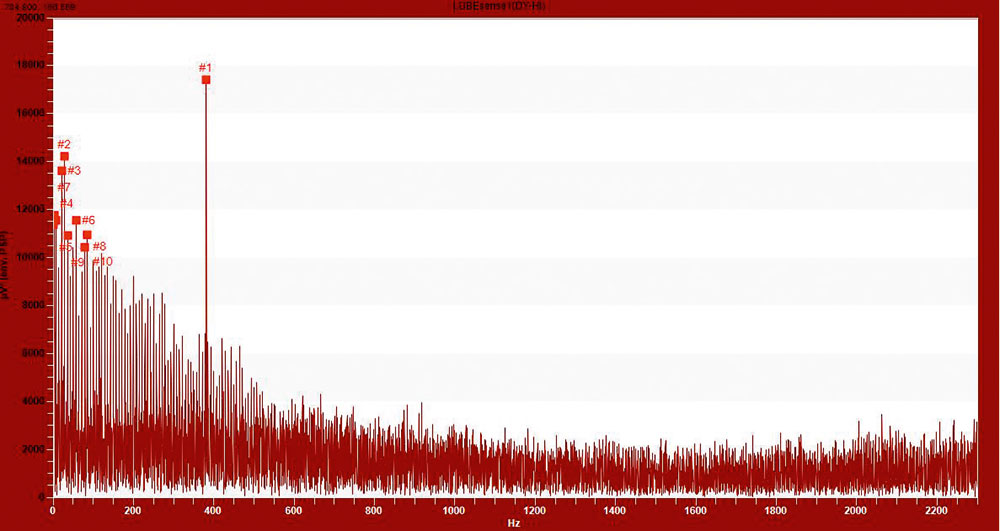

Before grease replenishment

Click Image to Enlarge

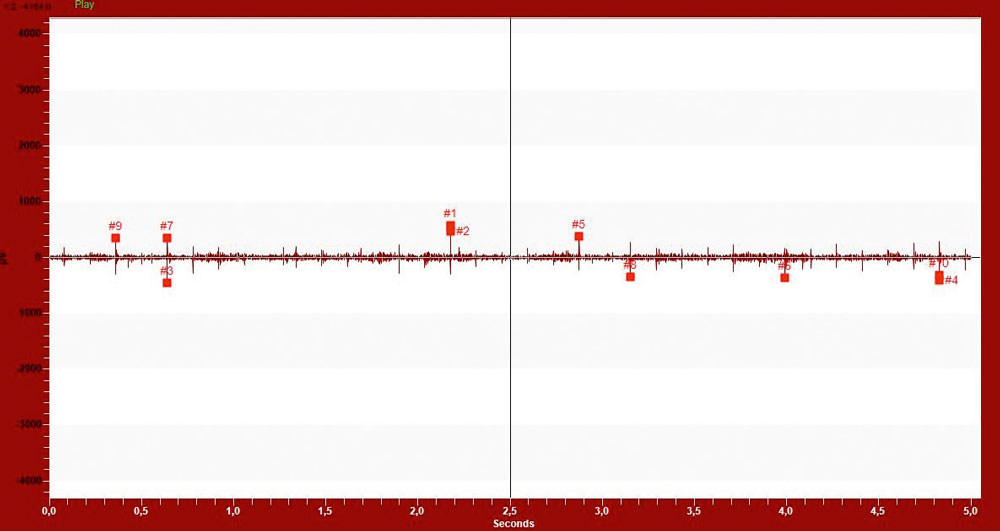

After grease replenishment

Click Image to Enlarge

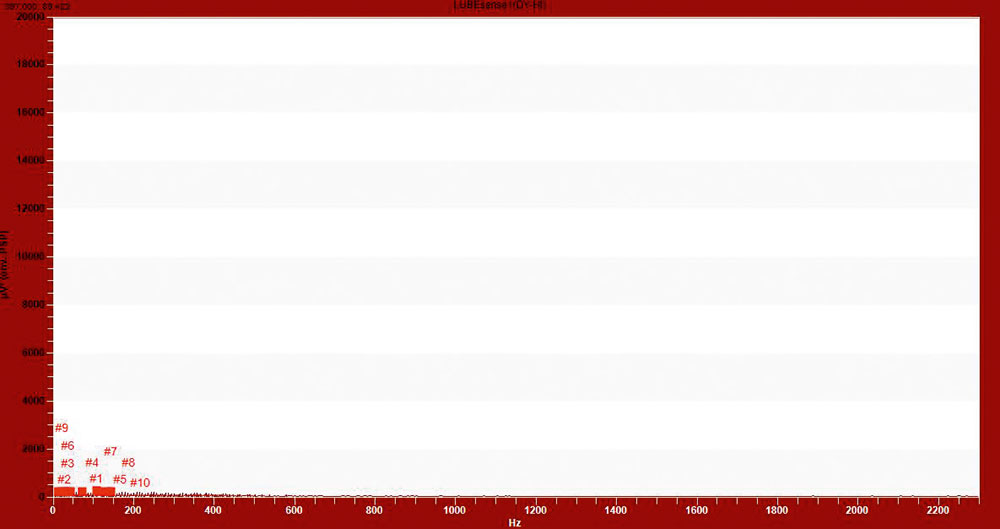

After grease replenishment

Lubrication as part of Condition Monitoring? Well, shouldn’t it be that way? The first line of defence has just become a Maginot line.
