The 30Compact Made by Wöhner Is Multifunctional and Cross-system
In the machine and panel building sector, the available space for power distribution is more and more limited. Nevertheless, the requirements regarding flexibility, availability and safety remain high. The 30Compact made by Wöhner is ready to meet these requirements. It combines the availability and the system idea of the well-proven 60Classic but with reduced space requirements.

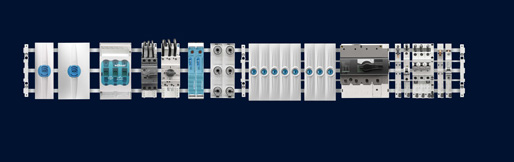

With its compact installation height of only 160mm, the 30Compact in the 3-pole version represents the ideal solution for the power range up to 360A. The possibility to combine it with components from the existing 60Classic is a further advantage. This increases the panel builder’s flexibility when planning their panels. For fuse-free outgoing feeds, the busbar adapters EQUES®30Compact up to 32A and 63A are available. They allow for mechanical fixing and safe connection of motor starter combinations to the busbar system. The main features of these busbar adapters are the moveable DIN rail, an adjustable combination base (from 5mm to 10mm and back) as well as temperature resistant AWG conductors. Outgoing feeds designed for use with fuses can be realised in the 30Compact, with, for example, the QUADRON®60Classic NH000 up to 125A.
More: www.woehner.com
