...You are still there? Then we may share some challenges in transferring theory into practice. This article may possibly contribute to our mutual quest for better performance predictions. Whilst not including a survey of availability definitions, this article arbitrarily poses the definition from [1], [2], [3]:

The ability of an item to be in a state to perform a required function under given conditions at a given instant of time or over a time interval, assuming that the required external resources are provided.

This definition is not very specific on how to quantify availability. I do not pretend to be able to exhaustively survey all conceivable approaches for quantification, but I have sincerely tried to deduce an approach that respects this definition. This article explains why availability predictions are encumbered by human influence and from the availability definition, the assessment of a “state” and an “ability” at a given instant of time are deepened. Other parts of the definition are referred to in the discussion. Finally, a case study based on recordings from industry illustrates the main points.

Assessment of an Item’s State

It seems a convention to define an item’s state by some Bernoulli variable (Y) that takes two values, either 0 or 1. Applied on our availability definition, Y may follow from Equation 1:

 Y = {0, item is in a state to perform a required function…

 {1, item is NOT in a state to perform a required function…

For some items, such as simple electronic components, the assessment of Y is common sense. Unfortunately, it seems to be rather the rule than the exception that Y’s assessment is not straightforward. Definitely, it helps to carefully articulate a function as explained in [4]. For example the expression “to pump water at 100 m3/hr” is more precise than “to pump water”. One may interpret “to pump water at 100 m3/hr” as:

• A required function that has been posed by some person.
• An inherent function that refers to some intrinsic ability; for example a name plate capacity asserts what an item could perform (but not necessarily does).
• An observed function that has been measured.

An overall equipment effectiveness indicator [5] typically compares an inherent function with an observed function. Quality is a degree to which a set of inherent characteristics fulfils requirements [6]. I therefore interpret Y as a quality indicator that compares a required function with an inherent function. So, Y is not an immediately observable property of an item. Moreover, our availability definition requires satisfaction of “given conditions” and “external resources are provided”, Y is unobservable when these conditions are violated.

Some try to infer Y by some fault tree like formalism. However, these formalisms may contribute to Y’s assessment if and only then if:

• the explanatory variables of Y are better assessable;
• the (logical) function that relates these explanatory variables to Y is known or inferable.

Finally, some basics on requirements engineering [7], or quality function deployment [8] learn that trawling for a requirements process typically only captures most functional requirements. So, building Y on any (enumerable set of) functional requirement(s) is arguable.

Click Image to Enlarge

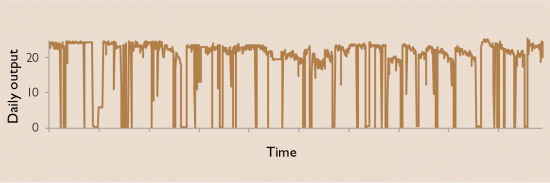

Figure 1. Observed daily output.

Assessment of an Ability

Although “ability” is not closely associated with some mathematical formalism, it seems common practice to choose probability. A probability then expresses a degree of certainty to obtain a state Y = 0. Equation 2 shows a probabilistic approach to an item’s instantaneous availability (At).

 At = Pr (Yt =0 | C) (2)

The availability definition asserts that “given conditions” (C) are essential. This may be understood from the following example. If I would invite you to predict At of a car but I do not tell you which car, you may end up with At = 0,5 since you may lack arguments to see Yt = 0 more or less probable than Yt = 1. Adding information about the car’s mileage, its driver and its last successful mission may highly influence your estimation of At regardless that the physical properties of the car did not change. So, At is not an exclusive attribute of the car, it is driven by your appraisal of information admitted to C.

Apart from “assuming that the required external resources are provided”, the availability definition does not specify C, it determines the replications among the evidence. Since science is not about unique miracles but about reproducible outcomes, the number of variables in C should be far below the amount of evidence.

Textbooks often pose that C only comprises past failures while ignoring other knowledge, therefore, particularly field experts are expected to refute availability predictions from reliability engineering textbooks because these books typically ignore their expertise.

For a scientific inference of availability, C should comprise all influential variables for At but C should also be a small enumerable set. A choice for C typically depends on someone’s suspicions.

Case Study

Figure 1 depicts the daily output of some item over a period of 1977 consecutive days. The operational intent is to maximise daily output.

Assessing Y requires some arbitrary decisions. Firstly, we pose Equation 3 as a criterion to distinguish Y = 0 from Y = 1.

 Y =  {0, Inherent output > 19 (3)

 {1, Inherent output ≤ 19

Since it is illusive to encompass all stakeholder requirements in a mapping to Y, extending the set of functional requirements may mitigate, but does not eliminate controversy about Equation 3.

Finally, we pose that inherent output and observed output are equal. This may not be a bold assumption seen the operational intent to maximise output. Figure 2 shows the Y that follows from these decisions. During these 1977 days, some stakeholder definitely lacked some external resources, the tentative y [1,1977] obtained under the assumption that “all required external resources would have been provided” are not in Figure 2.

Figure 2 implies that in 1569 out of 1977 days the item’s state was satisfactory (Y = 0). Someone may arbitrarily pose C to be an empty set (C = { }). Like throws of a fair dice, all Yt from a time series y [1,1977] are then seen as replications. C = { } implies that any additional knowledge about the item’s maintenance or operations does not affect At. Anyone who refutes this bold claim acknowledges that Equation 4 is wrong:

Pr(Yt = 0) ≈

Ât = x|Yx = 0;1 ≤ x ≤ 1977 / x|1 ≤ x ≤ 1977

= 1569 / 1977

Fortunately for those who earn their living by supporting this item, Figure 3 wildly differs from Figure 1. So, Figure 1 is unlikely to come from an entirely random process. This justifies a refutation of C ≠ { }.

Someone may arbitrarily pose that C = {Yt-1}. For this memoryless process, At depends on Yt-1.

Pr(Yt = 0|Yt-1 = 0)

≈ Ât = x|Yx = 0; Yx-1 = 0; 2 ≤ x ≤ 1977 / x|Yx = 0;2 ≤ x ≤ 1977

= 1481 / 1568

Pr(Yt = 0|Yt-1 = 1)

≈ Ât = x|Yx = 0;Yx-1 = 1;2 ≤ x ≤ 1977 / x|Yx = 1;2 ≤ x ≤ 1977

= 87 / 407

Equation 5 with Equation 4 shows the consequence of extending C. The number of estimates for At increases whereas the number of replications (in the denominator) decreases. A resampling under C = {Yt-1} leads to Figure 4 that better approaches Figure 1 than Figure 3 did. Textbooks typically extend C = {Yt-1} to C = {Yt-1,Yt-2,…} while ignoring other candidate variables for C. For example results from condition based maintenance are irrelevant for any C = {Yt-1,Yt-2,…}.

This case raised some concerns about availability. A time series analysis on Figure 1 is possibly more straightforward.

Click Image to Enlarge

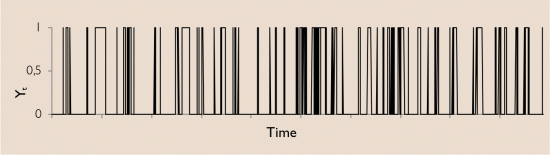

Figure 2. A Bernoulli variable Yt built on daily output.

Click Image to Enlarge

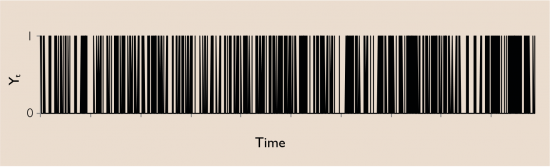

Figure 3. A typical pattern of Y[1,1977] from an independent and identically distributed process (At=1529/1977).

Click Image to Enlarge

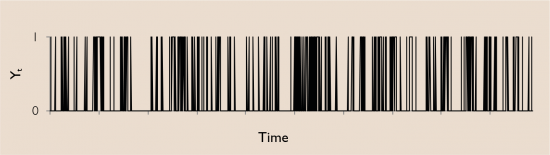

Figure 4. A typical pattern of Y[1,1977] from a memoryless process (At|Yt-1= 0 = 1481/1568; At|Yt-1=1=87/407).

Conclusion

Availability prediction may be seen as a subjective probability measure on a subjectively assessed Bernoulli variable. Since textbooks typically ignore any knowledge beyond past failures, their use for availability predictions is limited. A time series analysis on performance may be more straightforward.

Acknowledgement

Many thanks to Dr. Knezevic from MIRCE Akademy who carefully reviewed a draft. Of course, I remain fully accountable for the errors.
