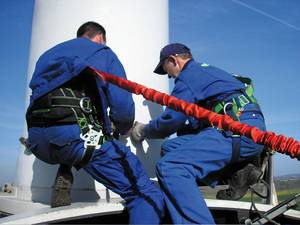

Fig 1:  Mounting the balancing belt on a rotor blade

Field balancing of rotors, machines and fans is common practice in machine and system engineering. It is worth considering having the rotor blades of a wind turbine balanced, especially since there are wind turbines with relatively strong, low frequency vibrations and because rotor blades can be balanced using one-plane balancing. Preliminary trials have shown that PRÜFTECHNIK measuring equipment is sensitive enough to perform linear measurements and balancing at 0.1 Hz and higher.

In the example blow, an operator reported frequent shutdowns triggered by a vibration monitor integrated in the nacelle. The initial response would be to assume that the vibration monitor was not adjusted properly and to attempt to correctly adjust the device. The next step might be to search for a new, less vibration prone location in the nacelle for mounting the device. But not in this particular case. Here, PRÜFTECHNIK was immediately contracted to measure the vibrations and to reduce their magnitude by means of field balancing. Figures 1–3 show various stages of this work – from attaching the balancing belt to measuring the imbalance and fixing the additional masses.

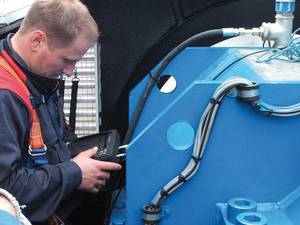

Fig 2: Measuring the imbalance

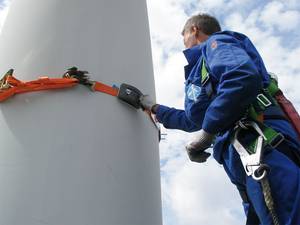

Fig 3: Attaching a determined balance mass

One-plane field balancing was performed in four steps:

1. Diagnosis measurements

The first step was to measure and evaluate the low frequency amplitude spectra of the vibration velocity. The results showed that there was a rotational speed range within the rated operating range of the turbine in which the tower’s natural frequency underwent particularly strong excitation. This made it clear that even small imbalance masses or other disturbances would cause the rotor/nacelle/tower system to vibrate.

2. Imbalance run

In the imbalance run, a foreign mass is applied to the system in order to “get to know the system”. Additional masses are mounted on a rotor blade and measurements are made of the rotational vibrations by means of accelerometers. Also, rotational speed and phase are determined using optical sensors. Because the system described here exhibited resonance excitations, only small im-balance masses could be attached. To reduce aerodynamic imbalance influences, the wind turbine had to be run in a non-critical state and without pitching.

3. Balancing runs

The balancing runs themselves were performed using the balancing program in the VIBXPERT measuring device. The measuring program was configured so that only three fixed positions existed for applying the additional masses –namely, the three rotor blades. The suggested balancing masses were attached to the premounted balancing belt and the balancing run was repeated.

4. Repeat diagnosis measurements

Following the balancing runs, the diagnosis measurement is repeated and compared to the initial condition. In this particular case, a reduction in the vibration load of about 40% could be achieved in the resonating state. The diagnosis measurements also revealed that the natural resonance of the tower was excited by aerodynamic imbalances. The operator was advised to electrically block the critical speed ranges to prevent the aerodynamic imbalances from causing resonance.
